TLC Kit

TLC Kit
SUPERFIT Research Insts

TLC Kit

Brand SUPERFIT Research Insts
Category TLC Kit
Price on request

Send us an enquiry below and our team will come back to you with a quote.

Request a quote

Description

Tin Layer Chromatography Kit Model PC-9. This unit is base on German pattern Developed by thickness adjustment arrangement between 0 to movable 2mm.

Specifications

Model Description

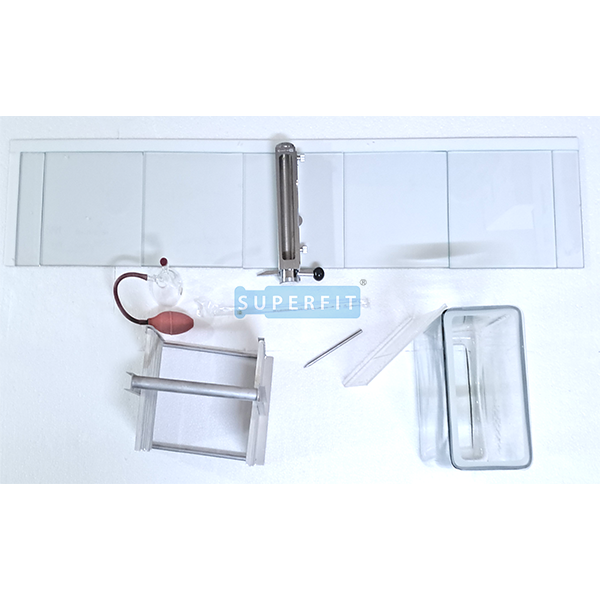

R/340 Tin Layer Chromatography Kit Model PC-9. This unit is base on German pattern Developed by thickness adjustment arrangement between 0 to movable 2mm.Model PC-9 has the following components:-
a) Spreader (Applicator) made of electroplated brass.
b) Perspex base size 114 x 23 cm. to support 5 glass plates of size 20 x 20 or 10 of 20 x 10 cm. and two plates of 20 x 5 cm.
c) Drying plate rack anodized alluminium for ten 20 x 20cm. plates.
d) Spotting Template Perspex.
e) Developing tank with lid.
f) Five Glass plates 20 x 20cm. and two end plates 20 x 5 cm. or Ten 20 x 10 cm. and two 20 x 5 cm. plates.
g) Micro pipette corning glass.
h) Scriber.
i) Glass Sprayer with rubber bellow.
j) Instruction Manual
  Optional Accessories for T.L.C. Model PC-9
R/340/02 Draining rack for holding washed plates in angular position so that water can drop off over corner of wet plates before coating.
R/340/03 Plate rack made of stainless steel to hold vertically two plates of 20 x 20 cm. in developing tank
R/340/AL Drying plate rack made of anodized alluminium for plates of 20 x 20 cm.
R/340/04 T.L.C. Plate storage Teakwood Cabinet for transport and storage of coated plates, sealed against air humidity. Size: 38 x 23 x 20 cm.
R/340/05 Dessicator Cabinet, this is used for storing plates in thin Layer Chromatography and for general laboratory work. Mae of hick alluminium sheet with stout glass door with rubber gasket. A tray for silica gel desiccant and two perforated shelves are provided.
Inner Dimension
Height x Width x Depth
Size 30 x 50 x 35cm.
  Replacement and Additional parts for T.L.C Model PC-9
R/340/01 Spare T.L.C. Applicator Electroplated Brass. Inbuilt thickness adjustment from 0-2 mm. (Minimum div 0.25mm)
R/340/08 Spare Perspex base (white Acrylic) size 114 x 23cm. to support glass plates
R/340/07 Spotting Template Perspex
R/340/11 Glass plate all sides ground 20 x 20cm
R/340/13 Glass plate all sides ground 20 x 10cm
R/340/15 Glass plate all sides ground 20 x 5cm
R/340/17 Chromatography tank with cover for 20 x 20 cm. plates
R/340/19 Chromatography tank with cover for 20 x 10 cm. plates
R/340/21 Chromatography tank with cover for 20 x 5 cm. plates
R/340/23 Glass sprayer with rubber below.
R/340/25 T.L.C. Micro pipette

Pipettes, Micro (Lambda) for T.L.C. single mark

Catalogue no. Capacity Lambda
R/340/27 5
R/340/30 10
R/340/32 25
R/340/34 50
R/340/36 100
R/340/38 200
R/340/40 250
R/340/45 500
